Step 41

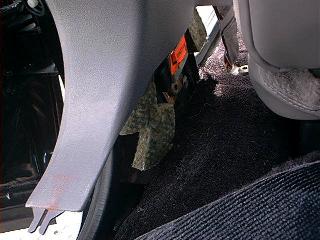

This photo shows the center pillar carpet retainer raised, notice the seat belt fastened to the floor, it's easier to run the gray wire with this removed, but it can be done without. If you don't remove it you will have to stuff the wire from the front floor board area and retreive it from the rear floor board area.
Note: be careful when feeding the gray wire through openings to avoid stressing the end connector wires.
Step 42

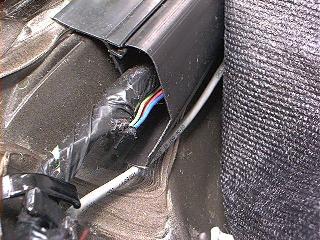

Shown is the gray wire running into back seat floor board area, notice the gray wire running outside of the plastic channel.
Step 43

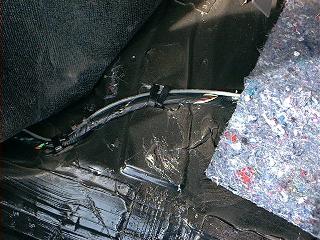

Continue running the gray wire back to the trunk, following the factory harness path. Stuff the connector end (gently) of the gray wire under the padding and up behind the rear seat back, retrieve it from inside the trunk and remove the slack from the wire inside the passenger area. Visually inspect the gray wire and connector for damage if none found reinstall all interior pieces.
Note: be careful when feeding the gray wire through openings to avoid stressing the end connector wires.
Step 44

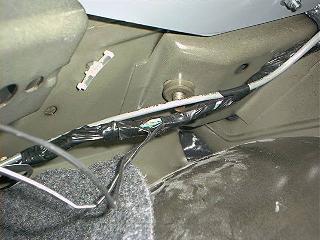

Inside the trunk continue following the factory harness around the drivers side towards the tail lights,
Hint: don't tape the gray wire to the factory harness until trunk installation is complete.
